Indexer for setting the depth stop position on DBS electrode
*The products in this catalog may not be cleared for sales in all
markets.
Please contact your Elekta sales representative for
more information.
Article No: MER590163
Ruler to set the depth stop of DBS leads and other devices when using the Elekta Microdrive.

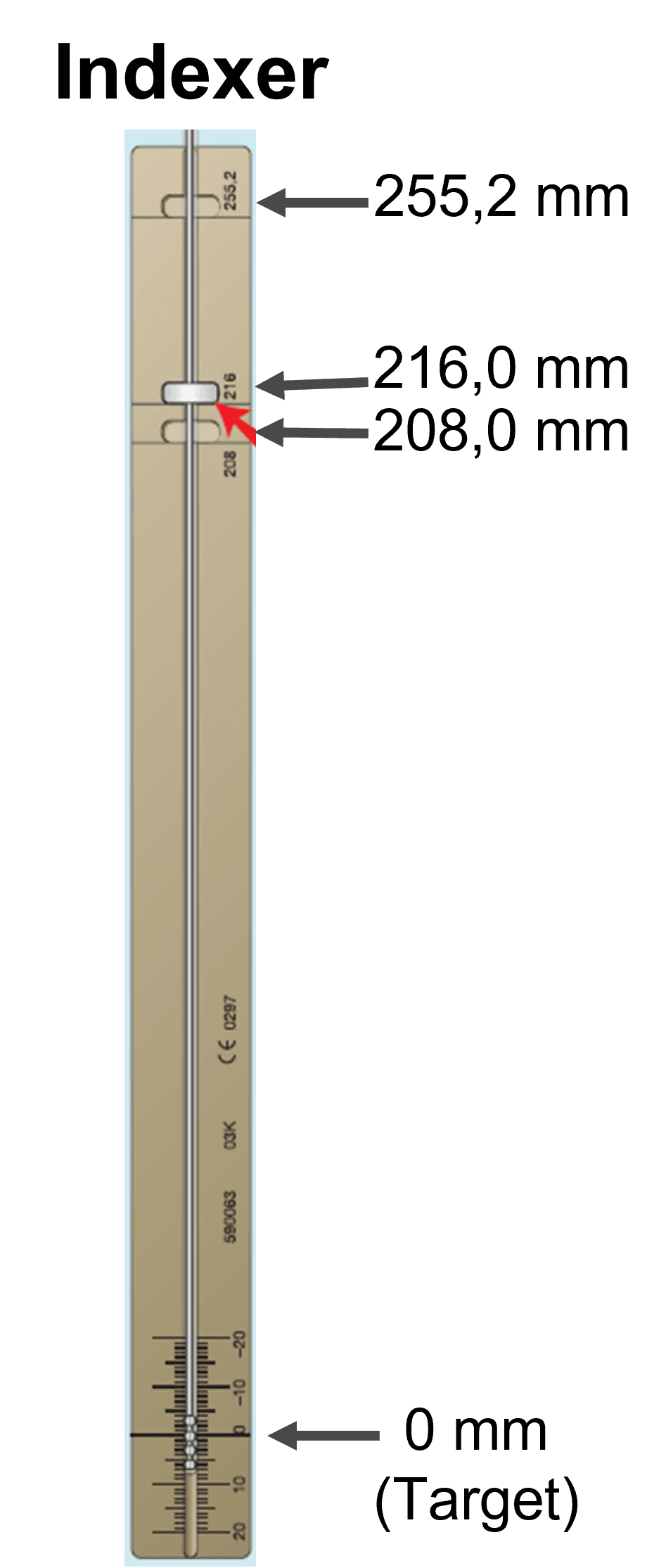

There are three cavities on the Indexer corresponding to the stopper aligning with the MicroGun (208 mm) with a guide tube (216 mm) or with the electrode holder (255.2 mm).
When a guide tube is used the manual stop should be set at 216 mm in order to reach the target.
This product is replacing MER590063.
