Salcman Twist Drill Kit
*The products in this catalog may not be cleared for sales in all
markets.
Please contact your Elekta sales representative for
more information.
Article No: A2200-01
Salcman Twist Drills are used to twist drill burr holes guided by Leksell® Multi Purpose Arc or Leksell® Vantage™ Arc System. Kit I includes two drills of diameters 2.10 and 3.20 mm with a reducing tube for the smaller drill.
Salcman Twist Drill kit enables the surgeon to place a twist drill hole with a suitable diameter, at a predetermined place and angle. This may be useful for taking multiple biopsies from different targets in one trajectory, for electrode implantation in a specific pattern etc.All the components of the drill kits are made of stainless steel, with the exception of the guide insert and the stop insert, which are made of plastic.

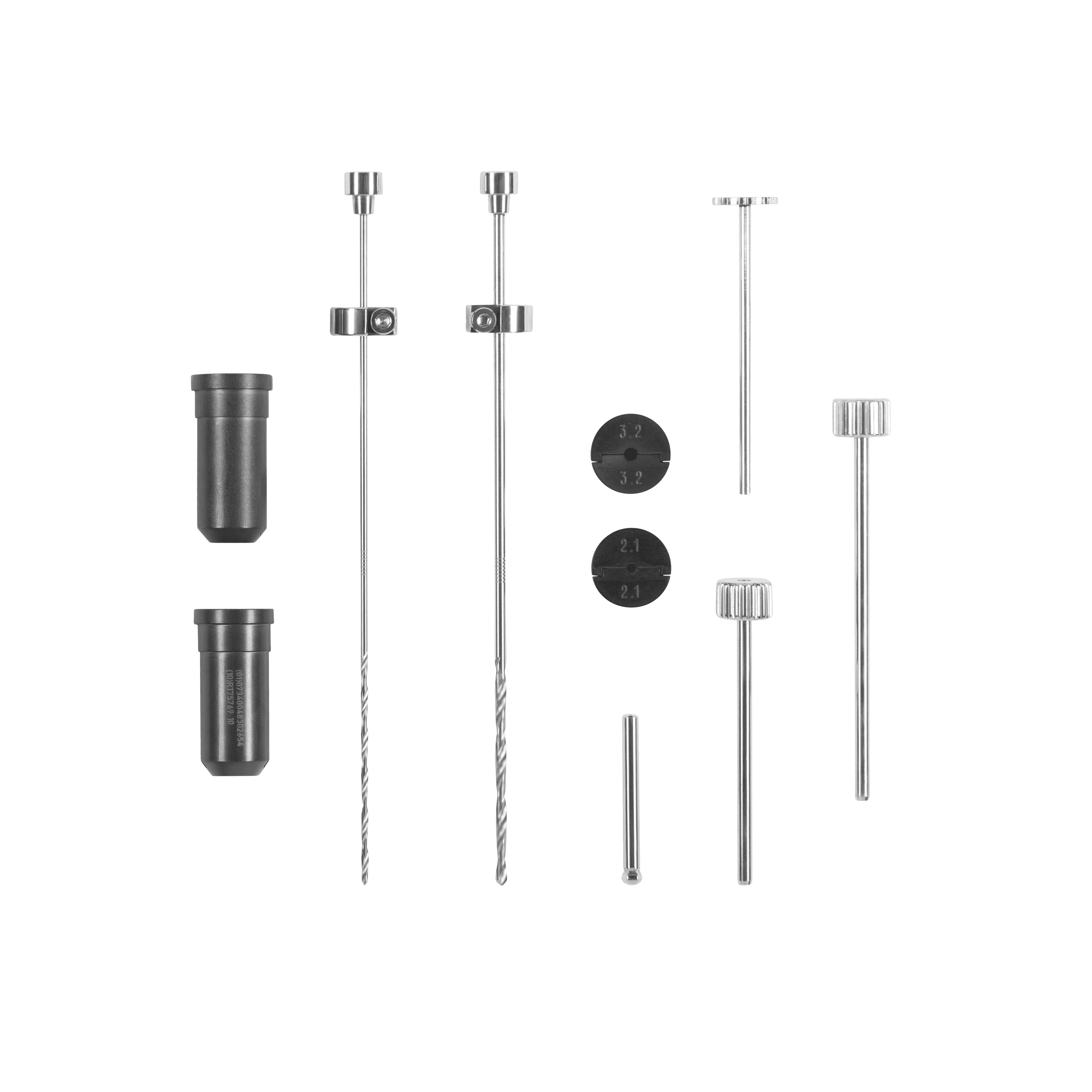

Consisting of:
- Twist Drill 2.1 mm - 60377-01
- Twist Drill 3.2 mm - 60377-02
- Sleeve L = 70 mm, 4 mm - 60379-01
- Sleeve L = 95 mm, 4 mm - 60379-02
- Reducing tube - 60380-01
- Stop with 4,0 mm hole - 60080-40
- Guide with 4,0 mm hole - 60081-40
- Drill Driver - 60149-01
- Adjustable stop 2.1 mm - 50378-01
- Adjustable stop 3.2 mm - 50378-02
- Sterilizing Tray / Small - 60082-05
